. Balluff Connectivity

Balluff: Connectivity

Cordsets

With a large selection of M12, M8, 7/8 and RJ45 industrial grade cordsets, there is something for every industry. With single and double ended options, these products reliably transmit signals, data, and power for each application.

Double Ended Cordset
M12 M/F; A-coded 4-pin
PUR Black

Length [m] Part Number
0.6 BCC039J
10 BCC06WR

Double Ended Cordset
M12 M D-coded to RJ45
TPE Teal; Shielded

Length [m] Part Number
0.6 BCC0E92
10 BCC0E8p

Single Ended Cordset
M8 F; 3-pin; A-coded
PUR Black

Length [m] Part Number
1.5 BCC0A7J
10 BCC02MA

Bulk Cables

For increased flexibility for special or larger applications, these robust and industrial grade cables are easy to assemble and freely adaptable.

Bulk Cable
PUR Black

Conductors Part Number

Y-Splitters

A comprehensive product range to connect different cable connections while maintaining dust and water protection.

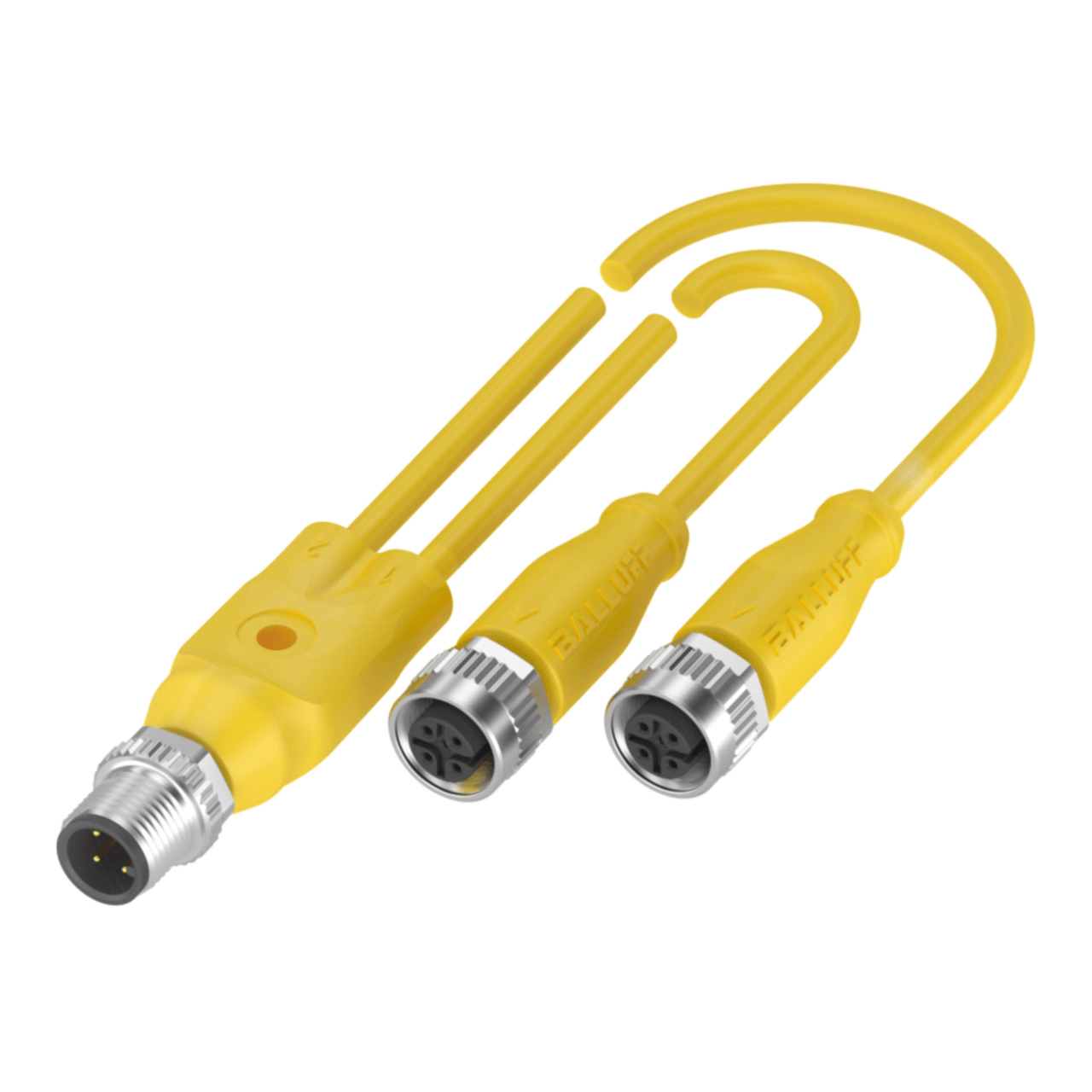

Y-Splitter
PVC Yellow
M12 M/F/F; 4/5/5 -pin
A-coded

Length [m] Part Number
0.3 BCC0AL2
0.6 BCC0AL3

Y-Splitter
PUR Black
M12/M8/M8 M/F/F; 4/3/3 -pin
A-coded

Length [m] Part Number
0.3 BCC0EZ7
0.6 BCC0AFW

T-Splitters

Small and narrow solutions for compact cable connection applications rated for IP67/68.

T-Splitter
Black

Connection 1 Connection 2 Connection 3 Part Number
M12 M
5-pin
M12 F
5-pin
M12 F
5-pin
BCC09MU
M8 M
4-pin
M8 F
3-pin
M8 F
3-pin
BCC0F5A
7/8" F
4-pin
7/8" F
4-pin
7/8" M
4-pin
BCC0AA6
M12 M
4-pin
M8 F
3-pin
M8 F
3-pin
BCC09JC
M12 M
4-pin
M12 F
3-pin
M12 F
3-pin
BCC0F56

Field Wireables

Varying connection designs for every assembly needed while reliably transmitting data and power.

Field Wireables
Screw Terminal

Type # Pins Gender Cable Dia Part Number
M12 4 M 6-8 mm BCC06F7
M12 5 F 6-8 mm BCC06F6
M8 5 M 2.2-3.5 mm BCC0E7N
M8 3 F 3.5-5 mm BCC06Z1
7/8" 4 M 10-12 mm BCC070C
7/8" 4 F 10-12 mm BCC0707

Receptacles

With a comprehensive range, these products offer quick connections to panels while maintaining high dust and water protection to the inside of your cabinet.

Receptacles/Panel Mount Connectors
IP67

Type # Pins Gender Lead Length Part Number
M12 4 M 0.6 m BCC0CZ4
M12 4 F 0.6 m BCC0CWL
M8 3 M 0.5 m BCC0E50
M8 3 F 0.5 m BCC0E4Y
7/8" 4 M 0.6 m BCC0CU9
7/8" 4 F 0.6 m BCC0CU6
